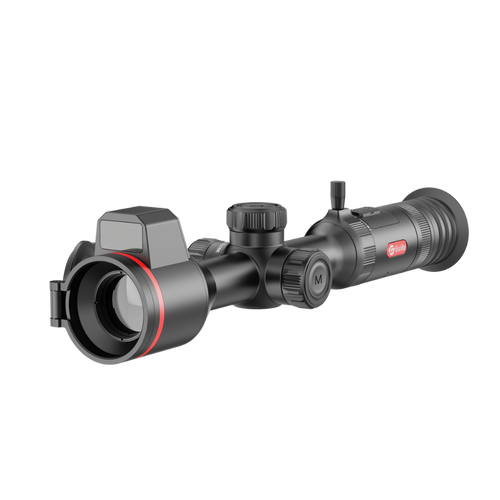

Guide TU435 LRF 3.0 400x300 Thermal Riflescope

Powered by next-generation sensors and the Hyper-Light Algorithm, this product elevates image quality to new heights. Experience improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details—all designed to deliver unparalleled visual performance.

Shutterless Design: Uninterrupted Visuals

With innovative shutterless 3.0 technology, the TU LRF 3.0 eliminates the clicking sound and image freezing. This ensures seamless, real-time footage during hunts, so you never miss a moment—even during calibration.

Locate with Precision: Up to 1,600 Yard,

The TU LRF 3.0 Series integrates a high-precision laser rangefinder, allowing you to accurately locate prey at distances of up to 1,600 yard. This advanced feature helps hunters achieve greater success in the field.

Seamless Control: Easy Focus & Zoom

Refined through extensive field testing and hunter feedback, the TU LRF 3.0 has been optimized in every detail—from the focus wheel to the zoom lever and button layout. Its ergonomic design ensures intuitive control and maximum comfort during use.

10 Year Warranty

All our thermal optics come with an industry-leading 10-year warranty, ensuring that we’re here to support you if you ever encounter any issues with your scope. Your peace of mind is our priority.

Sensor
Type: Uncooled VOx Infrared Detector, 8 to 14μm
Resolution: 400×300@12μm
NETD: 20mK
Frame rate: 50 Hz

Lens
Objective lens: 35mm, F1.0
Field of view: 7.4°×4.4°
FOV m@100m: 13×8
Magnification: 4.4x~17.6x
Detection range: 1950yd
Focus: Manual

Display
Display type: 0.49'' AMOLED 1920×1080
Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

Eyepiece
Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x

Hardware
Laser rangefinder: 1630yd
WIFI: 2.4G, 5G
Interface: USB-C (Charge/USB2.0)
Tube diameter: Standard 30 mm
Others: Microphone, Bluetooth

System
Recording function: Photo/Video (Audio recording included)
Memory capacity: 128GB

Power
Battery type: 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
Operating time: 12 hours

Environmental
Operating temp.: -20°C to 50°C / -4°F to +122°F
Recoil Rating: .300 Win Mag
Shock: 6000J/1200G
Encapsulation: IP68

Physical
Weight (g/oz): 780/27.51
Size (mm/in): 374×89×82/14.72×3.50×3.23
Standard: Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional: Bluetooth Remote Control, 18650 Battery
